Description

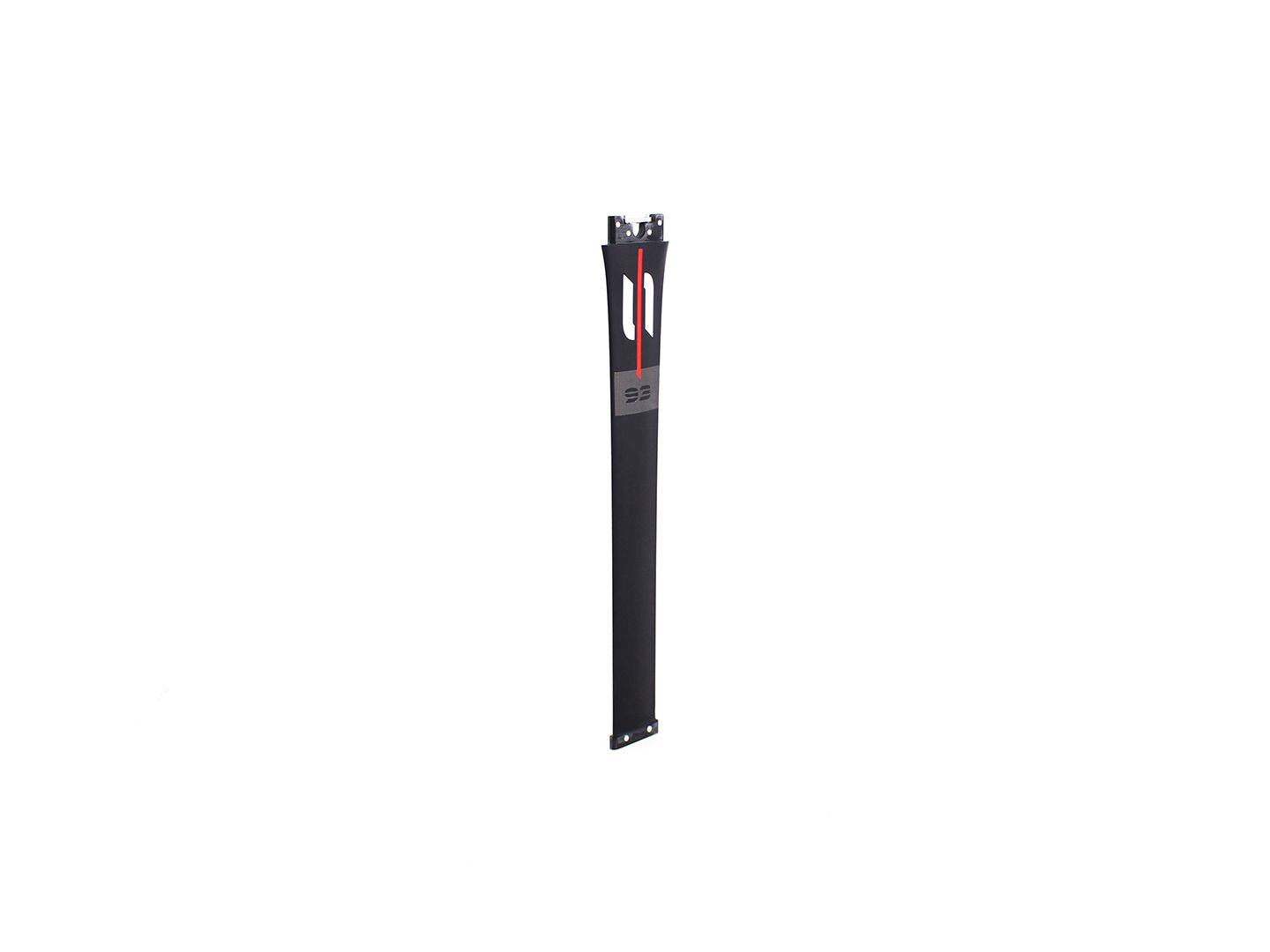

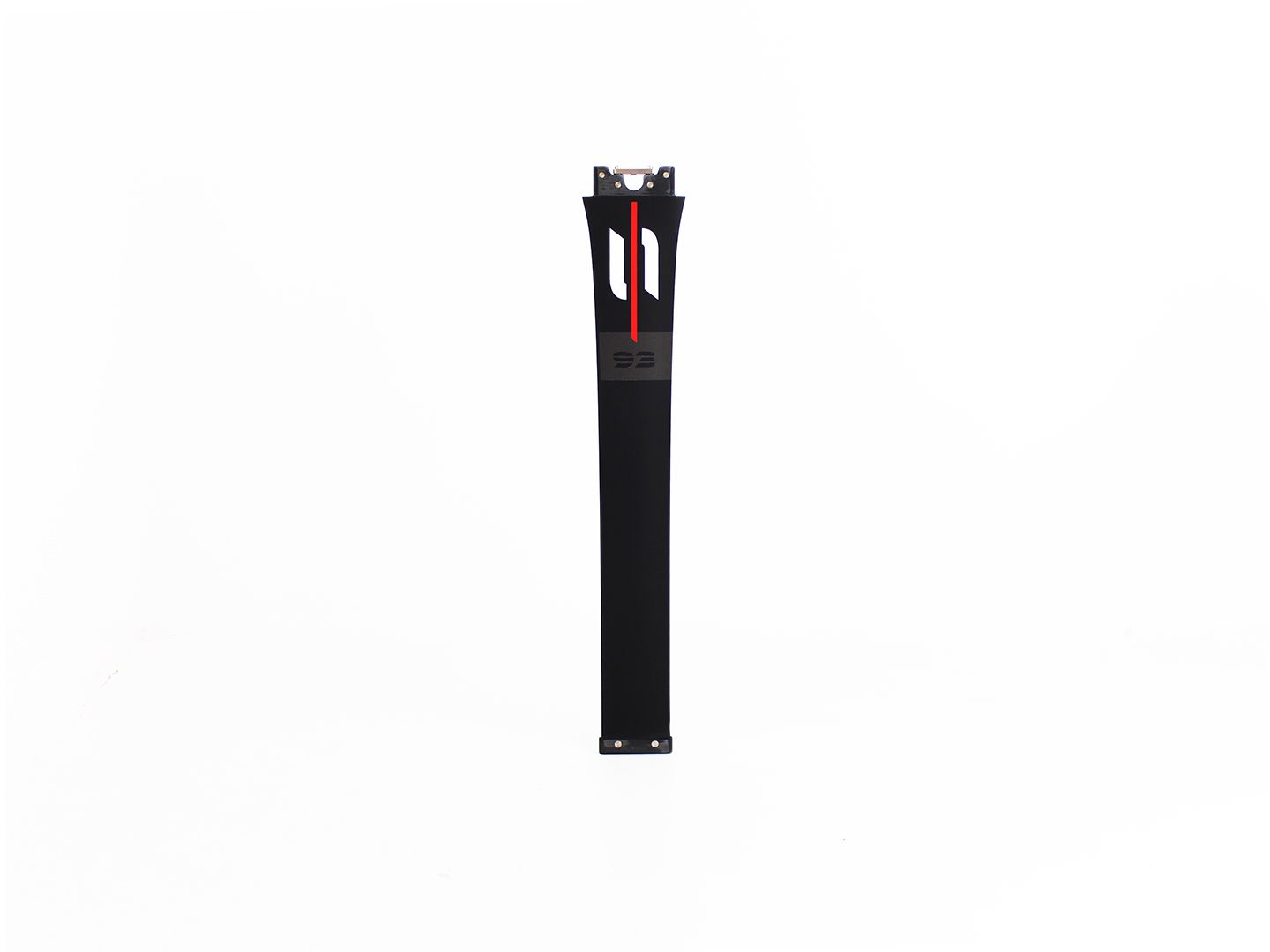

Sabfoil Kraken 93 | Hydrofoil Mast
KITE FOIL / WING FOIL / WIND FOIL / SURF FOIL / DOWNWIND
Main Specs:
Full Carbon (with core)
Conn. System: R8
Height: 930 mm
System: Kraken Modular System
Recommended for: Wave – Downwind – Freeride – Freestyle – SUP – Surf – Easy Riding
Mast-Fuselage Connection: R8
Material: Carbon (with core)
Range: Main Line
The profile of this 93 cm-long carbon mast has been optimized to have the maximum transversality between different disciplines. With this mast, you will be able to practice Wing-Foil, Surf-Foil, Kite-Foil, and Wind-Foil at maximum performance. Design, selected materials, and their use make this mast robust and performing, ideal for both speed and freestyle.

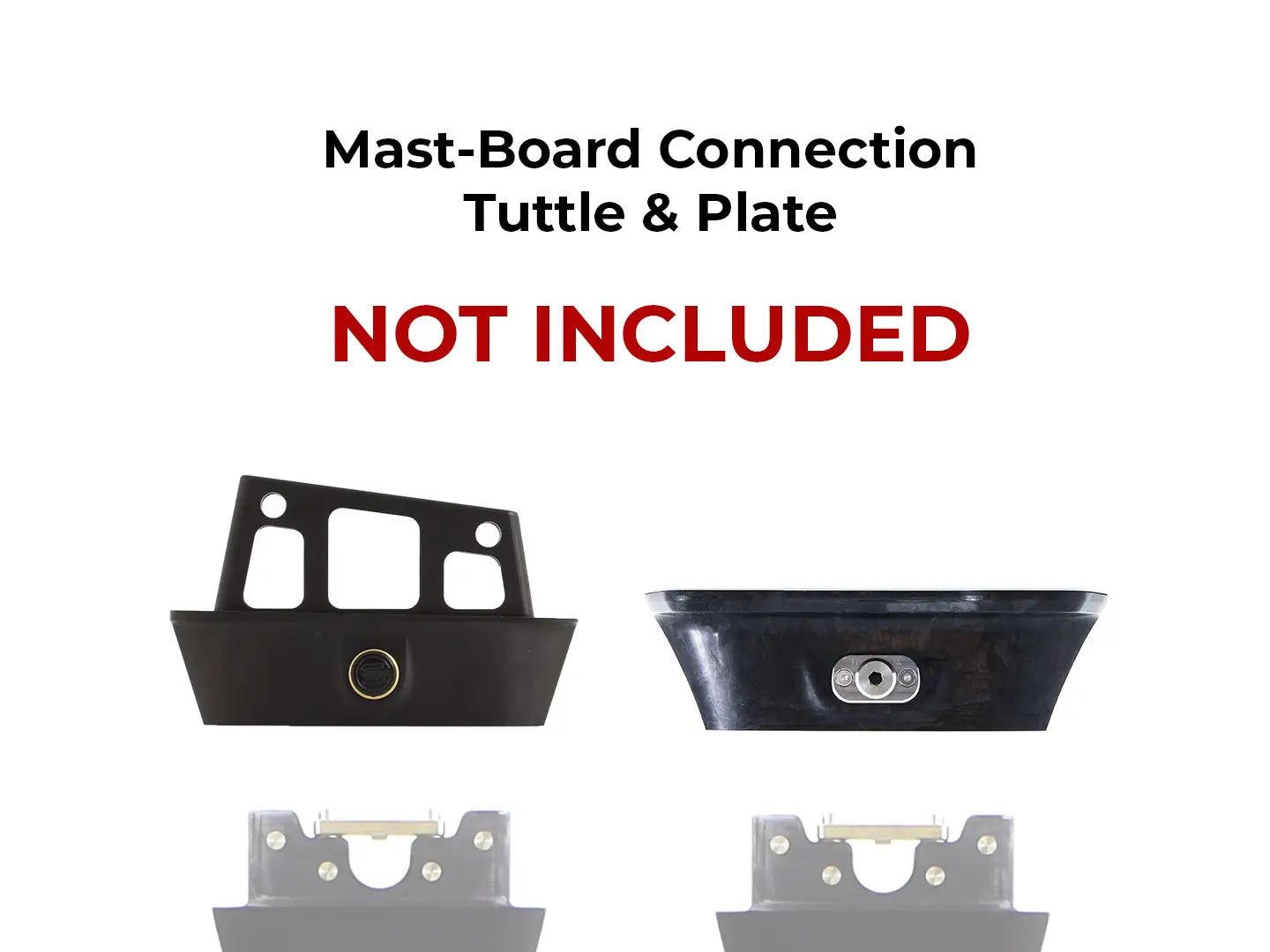

The Kraken Modular System makes this mast compatible with all fuselages belonging to the same SABFOIL range and allows you to choose the connection system to the board between Plate and Tuttle.
The MK/93 is hand sanded to achieve a matte surface with 0-thickness graphics, the SAB Pro Finish, for an elegant Made in Italy product with maximum performance.

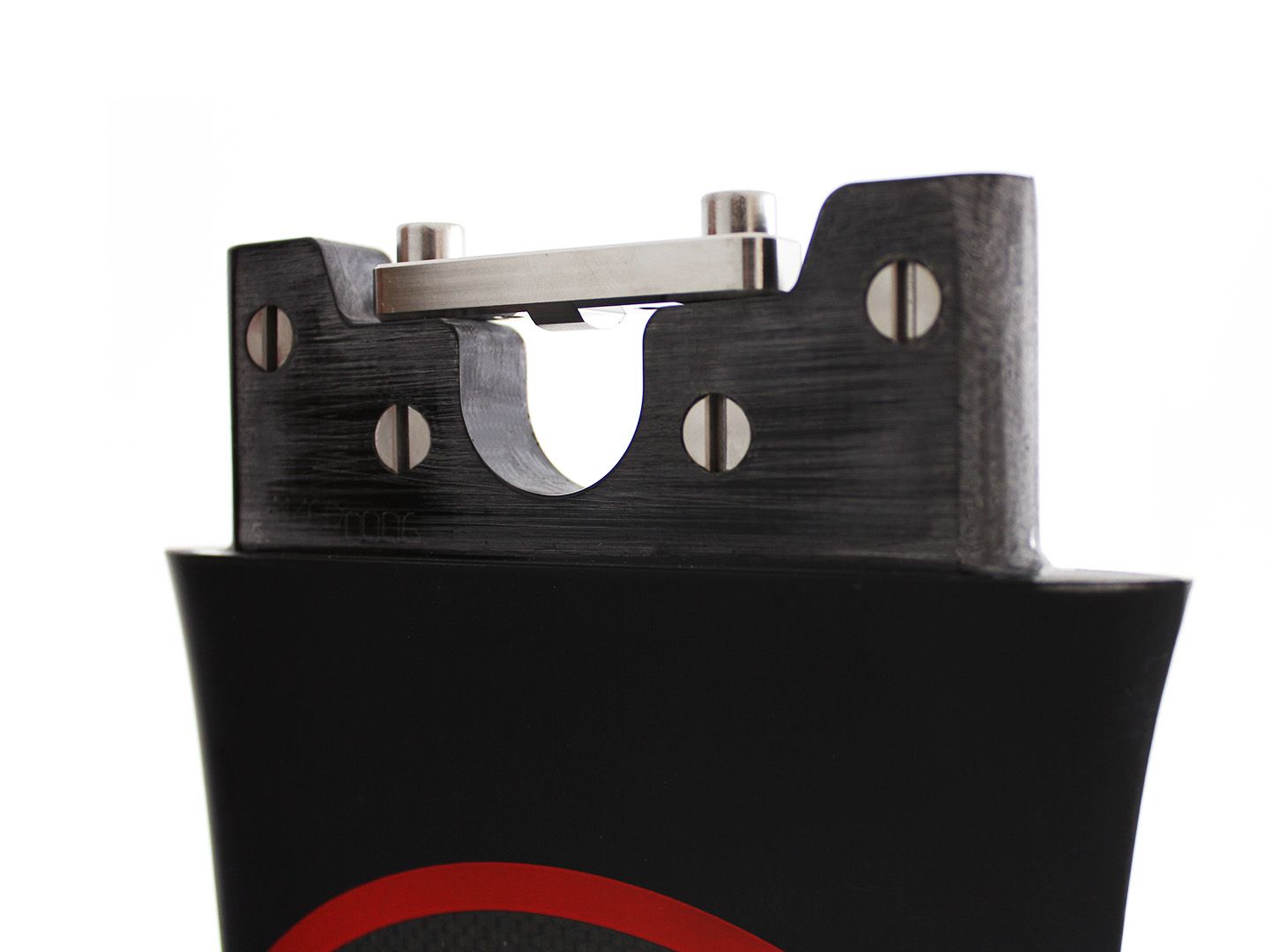

All Sabfoil masts are provided with the titanium module for pin support.
Dimensions & Advanced Specs:
Mast – Height: 930 mm
Mast – Thickness A: 18,4 mm
Mast – Thickness B: 16,1 mm
Mast – Thickness C: 14 mm
Mast – Chord A: 137,8 mm
Mast – Chord B: 112,6 mm
Mast – Chord C: 110,8 mm
Mast – Weight (ca.): ~1660 g
Material: Full Carbon (with core)
Fuselage Connection Type: R8
Content:
Sabfoil Kraken Mast MK/93 × 1
Module for Titanium Quick Release × 1
