Description

WING FOIL / FOIL GLIDER

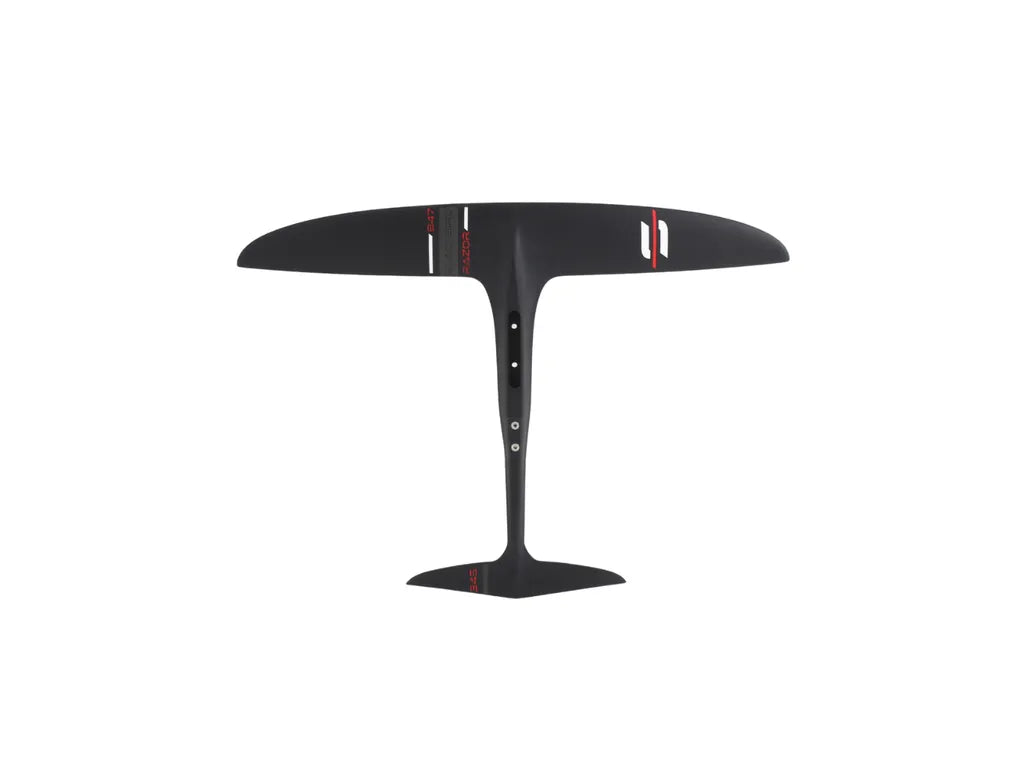

Blackbird Razor 847–345
High-Aspect Glider Hydrofoil Set
WR847/BB – SP345/BB

Range
Blackbird
Razor Range
Recommended for
Freeride · Wave · Downwind · SUP · Surf
Performance (≈80 kg rider)
Take-off speed: 13 – 15 knts
Top-end speed: 22 – 24 knts

Extreme glide, uncompromising efficiency

The Razor Line is designed for riders seeking a pure, fluid, and continuous flying experience.
A high-aspect front wing built to deliver exceptional glide, unprecedented pumpability, and outstanding performance in downwind and prone surf conditions.

Power, flow, and precision in a single profile

Every detail of the Razor’s design has been optimized to turn every input into speed and directional control.
The result is an ultra-efficient front wing, capable of maintaining a clean and stable water flow even through the most delicate transitions.

• Infinite glide thanks to the high-aspect profile

• Surprising pumpability for its size

• Speed and control over long distances

• Smooth and fluid response through carves and glides

This set includes the Blackbird Razor 847 and the Progressive Stabilizer 345.
Pair it with a Blackbird mast for the ultimate riding experience.

Want to experiment with different fuselage lengths or use your Kraken stabilizers?
Try it with the Blackbird Back Tail fuselages for maximum modularity!

Blackbird Technology, Built to Perform

Hydrodynamic Efficiency and Reduced Drag
The streamlined shape and monobloc construction cut through both water and air, improving flow, reducing turbulence, and smoothing out transitions, touchdowns, and rail-to-rail moves.

Active Lift and Trim Optimization
The wing generates additional lift, enabling earlier takeoff and reducing pressure on the rear stabilizer. The result is a flatter, faster, more balanced ride—even at high speeds.

Extreme Structural Stiffness
The aerospace-inspired fuselage design increases torsional rigidity by over 20% compared to cylindrical fuselages. Load distribution is optimized to handle even the hardest landings or abrupt maneuvers.

MONOBLOC Full Carbon Construction
The integrated one-piece connection between front, fuselage, and tail guarantees:

• Flex or twist reduced to the minimum

• Smoother transitions

• Instant feedback and control

• A truly connected riding feel

Who it’s made for

• Riders seeking maximum efficiency and glide

• Downwind and prone surf enthusiasts

• Those who want a foil that can fly further with minimal effort

• Experienced foilers looking to push their limits with a high-aspect setup

Dimensions & Advanced Specs
Front Wing – Razor 847

• Span: 847 mm
• Surface: 784 cm²
• Aspect Ratio: 9.2
• Root Chord: 115 mm
• Maximum Thickness: 16 mm

Stabilizer – Progressive 345

• Span: 345 mm
• Surface: 150 cm²
• Aspect Ratio: 8.2
• Root Chord: 64.4 mm
• Maximum Thickness: 7.3 mm

System

• Fuselage total length: 640 mm
• Mast connection: Carbon plate
• Foil set weight (approx.): 1.39 kg

Content

Blackbird Razor 847 Front Wing × 1
WR847/BB
Progressive 345 Stabilizer × 1
SP345/BB
Hardware Kit for Blackbird Glider × 1
MH171
Hardware Kit Mast to Blackbird × 1
MH172

Compatibility & Setup

• Designed to be paired with Blackbird masts for optimal performance
• Compatible with Blackbird Back Tail fuselages for riders who wish to experiment with different fuselage lengths
• Can be combined with Kraken stabilizers for advanced tuning options
